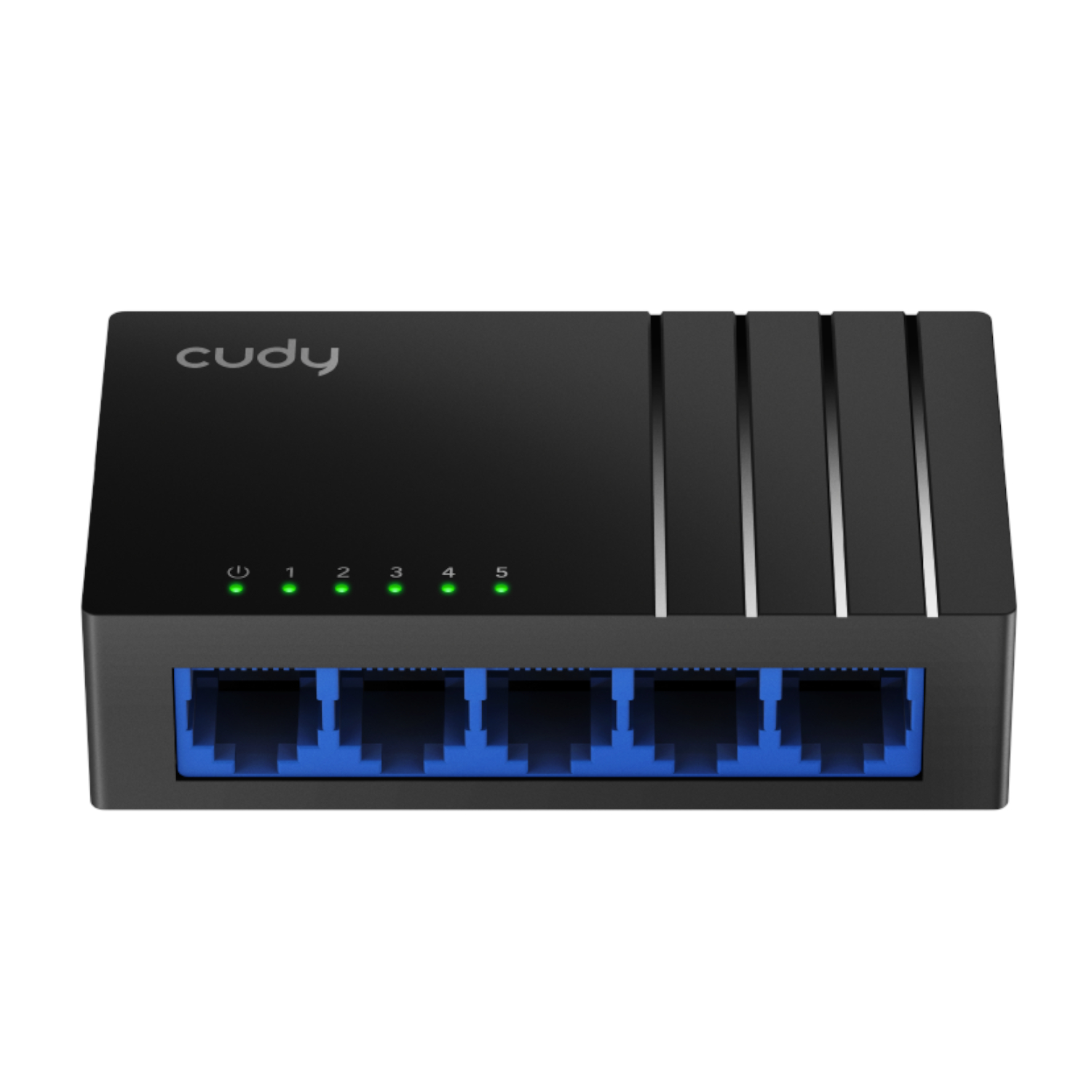

Cudy 5-Port Gigabit Desktop Switch
R199.00
99 in stock
Description

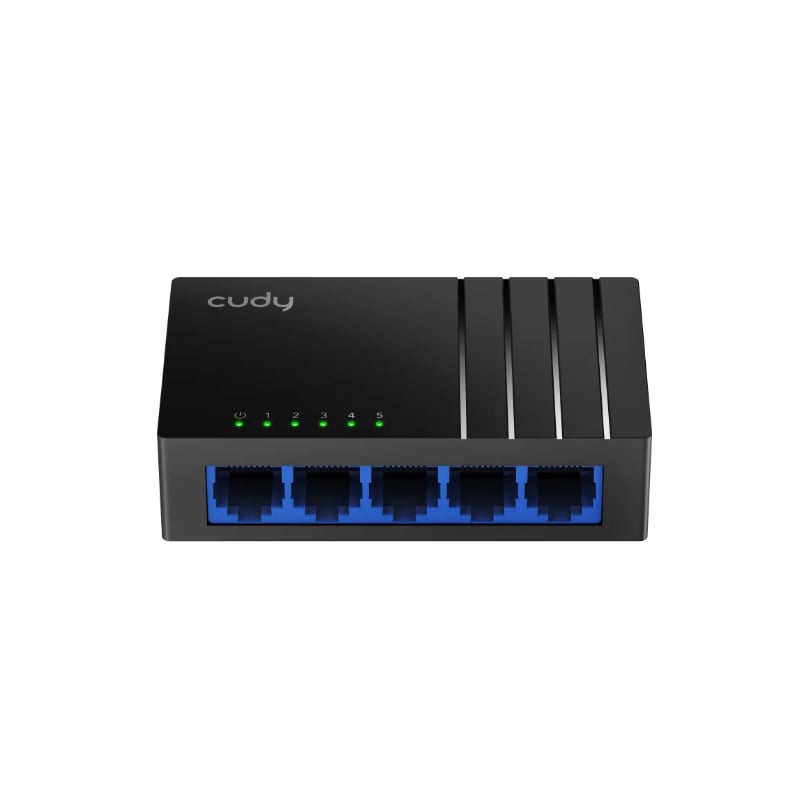

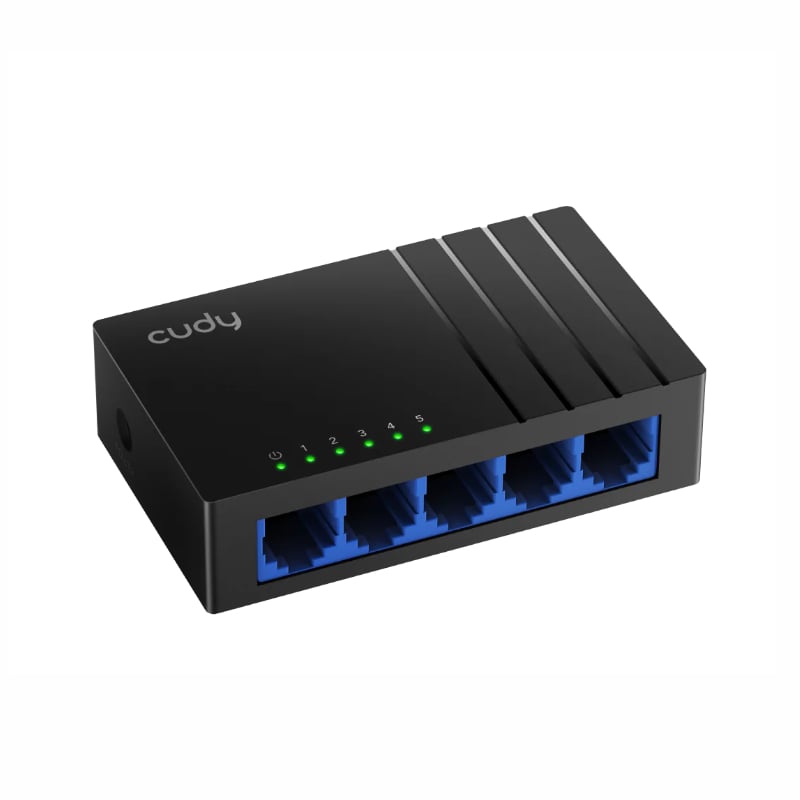

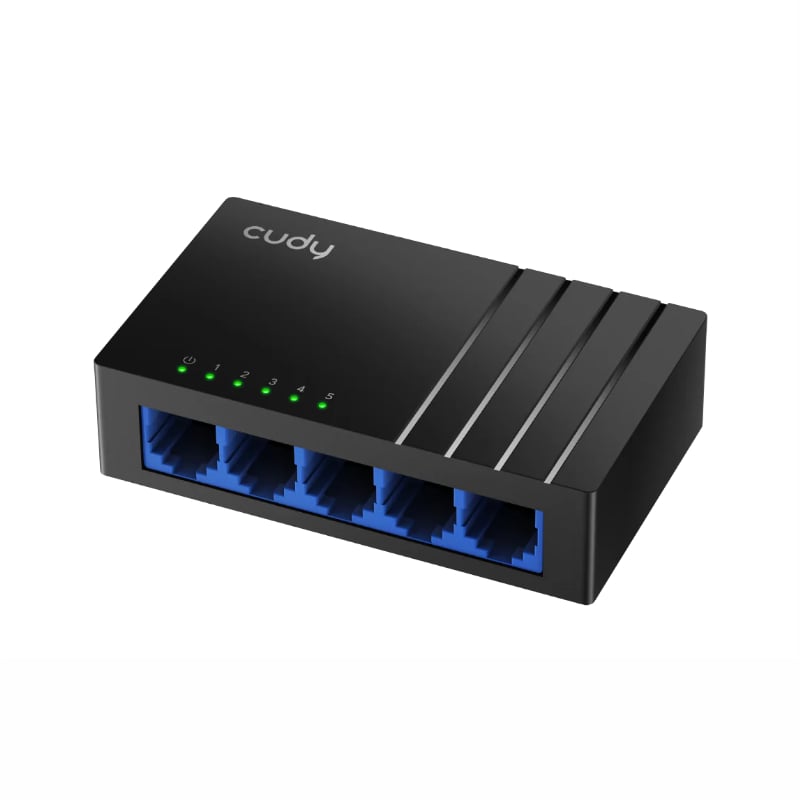

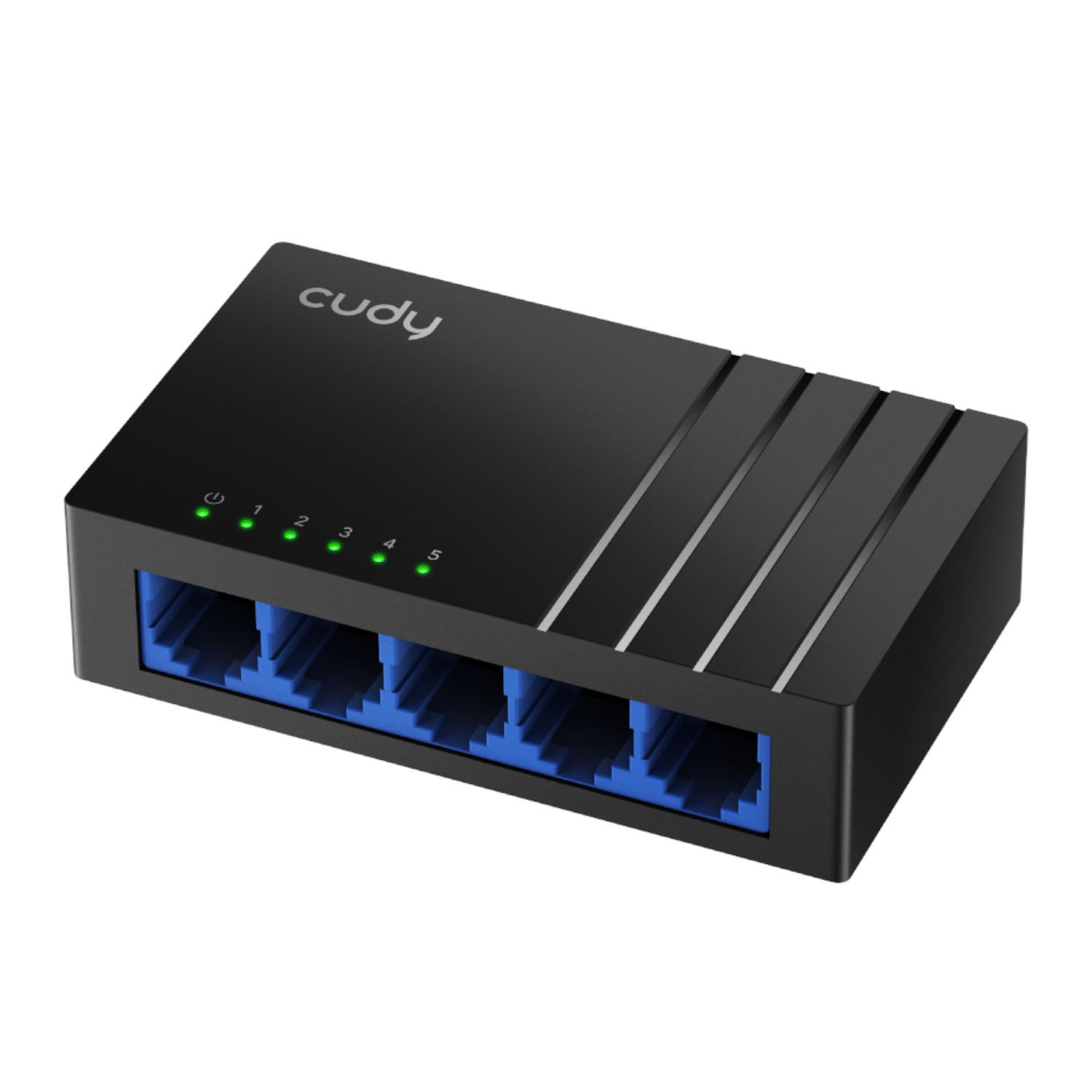

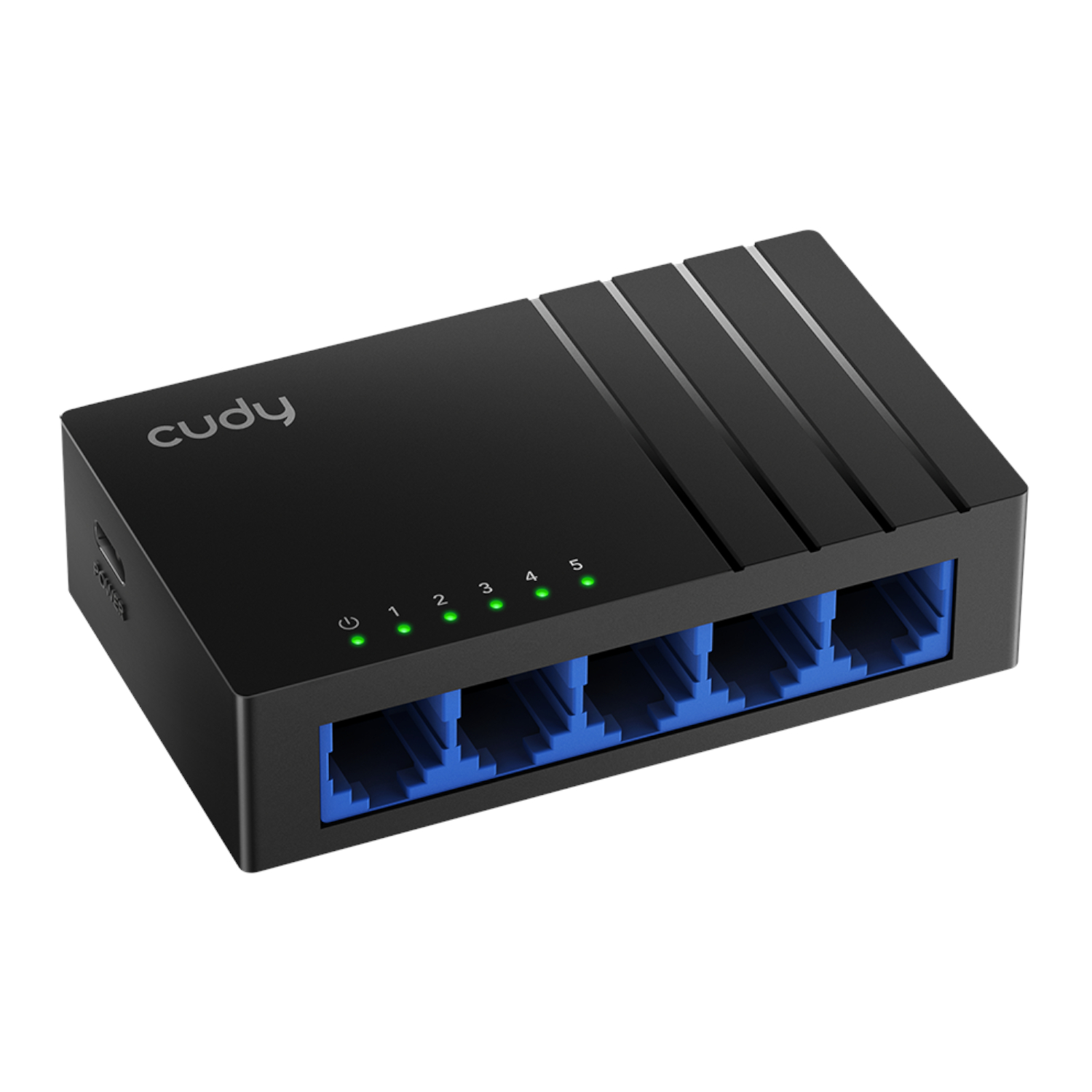

The Cudy GS105D 5-Port Gigabit Desktop Switch provides five 10/100/1000 Mbps non-blocking Ethernet ports allow for instant data transfer without mutual interference. 170 metres of Gigabit transmission adds 70% more distance than a standard switch, simplifying wiring for larger premises. Reduce power consumption when Ethernet ports are idle, resulting in lower networking facility electricity costs. The casing has two mounting holes on the bottom to accommodate wall-mounting scenarios. Most home network distribution boxes can accommodate a compact size. The wave line and blue ports create a modern appearance.
FEATURES:
- 5× Gigabit Ethernet Ports
- Max 140m Gigabit Transmission
- 3 Mbit Packet Buffer
- Max 2W, Idle 1.4W
- Desktop, Wall-Mount
SPECIFICATIONS:
- 802.3 Network Protocol:
- 802.3x Flow Control
- 802.3i 10 Mbps over Twisted Pair
- 802.3u 100 Mbps over Twisted Pair
- 802.3ab 1 Gbps over Twisted Pair
- Interfaces
- Gigabit RJ45 Ports: 5
- LED: Power/Speed/Link/ACT of Each Ethernet Port
- Power Input: DC Jack
- Performance
- Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps/ Cat. 5 or higher cable: 100 meters at 100 Mbps/ Cat. 5e or higher cable: 140 meters at Gigabit
- MAC Address Table: 2048
- Max Switching Capacity: 10 Gbps
- Max Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 15 KB
- Packet Buffer: 3 Mbit
- Power:
- Basic Power Saving: True
- Power Methods: DC
- DC: 5V 0.55A
- Max Power Consumption (W): 2W
- Idle Power Consumption (W): 1.4W
- Reliability:
- Lightning/Surge Protection: 2kV
- ESD Air Protection: 8kV
- ESD Contact Protection: 4kV
- Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

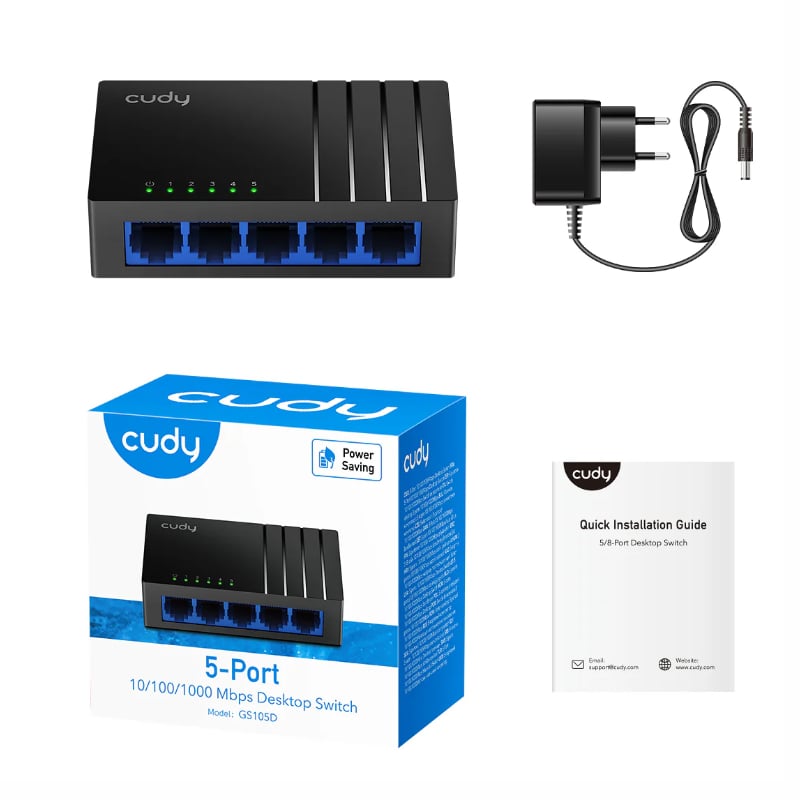

WHAT’S IN THE BOX:
- Cudy GS105D 5-Port Gigabit Desktop Switch – Black x1
- Power Adapter x1
- Quick Install Guide x1
Additional information
Weight | 134 kg |
---|---|
Dimensions | 9.5 × 6 × 9 cm |
